EVSXS6-100G1/100G2/150G1/150G2
- Direction：
- X轴
- Material：
- 不锈钢
- Size（mm）：
- 60mm*60mm
- Stroke length（mm）：
- 100mm,150mm
- Unidirectional positioning accuracy（μm）：
- ±0.5μm,±1μm
- Speed（mm/s）：
- 20mm/s,40mm/s
- Product Overview

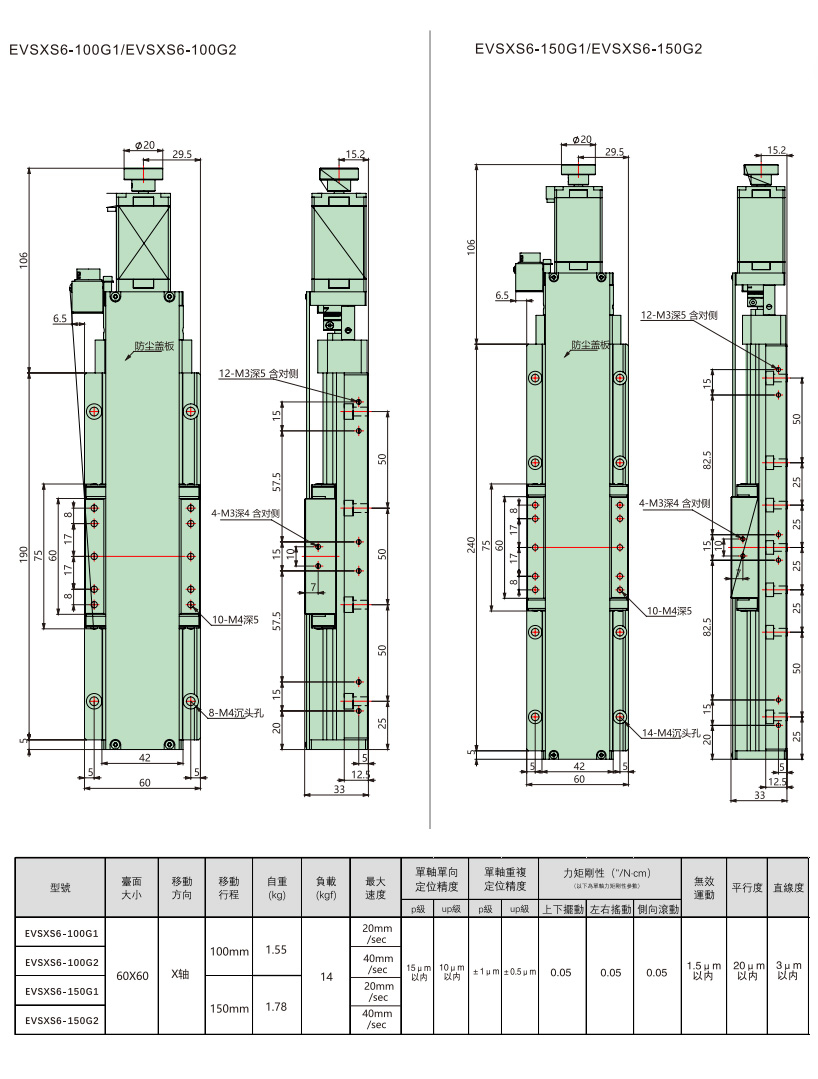

- Model Specification
- Product File Download
The electric sliding table is a high-precision linear motion device that integrates a motor drive, transmission mechanism, and guide rail system. It achieves smooth and high-speed reciprocating movement of the slider on the linear guide rail through precise control by a servo or stepper motor.
It is widely used in the automation field, such as 3C equipment assembly, laser cutting positioning, biological sample detection, and other scenarios. It can replace traditional air cylinders or manual displacement stages, achieving millimeter-level repeatable positioning accuracy and micrometer-level resolution. With its compact structure, low noise, and easy maintenance, it can quickly program and adjust motion parameters through PLC or host computer software, significantly enhancing the flexibility and intelligence of the production line.
