GTH Series
GTH17
- Width：
- 170mm
- Lead：
- 5mm,10mm,20mm,40mm
- Stroke length：
- 50mm,100mm,150mm,200mm,250mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm,1050mm,1100mm,1150mm,1200mm,1250mm,1300mm,1350mm,1400mm,1450mm,1500mm
- Precision：
- ±0.005mm,±0.01mm
- Power：
- 750W
- Product Overview

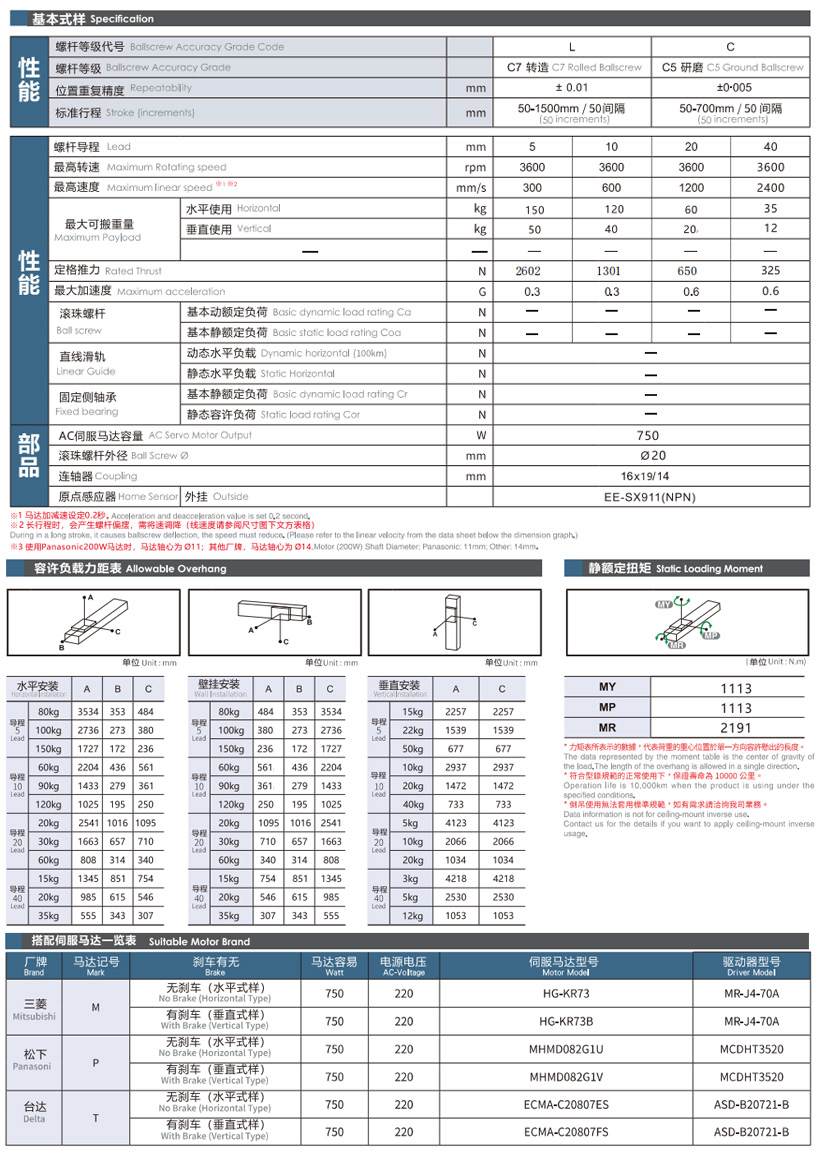

- Model Specification
- Product File Download
1 main purpose
It is widely used in industrial automation for work positioning, clamping, handling, and insertion.
II. Scope of application
Electronic component assembly, camera visual inspection, spot welding device, circuit board positioning and insertion device, and object alignment and placement
III service industry
5G communication industry, 3C electronics industry, lithium battery industry, visual inspection industry, food and packaging industry, photovoltaic industry
IV. Explanation of the Internal Structure Diagram of GTH
×
