U-shaped Series
KSU120-200
- Stroke length：
- ±100mm
- Unidirectional positioning accuracy：
- ±1.5μm
- Positional repeatability：
- ±1μm
- Motor thrust：
- 额定推力20N 峰值推力72N
- Product Overview

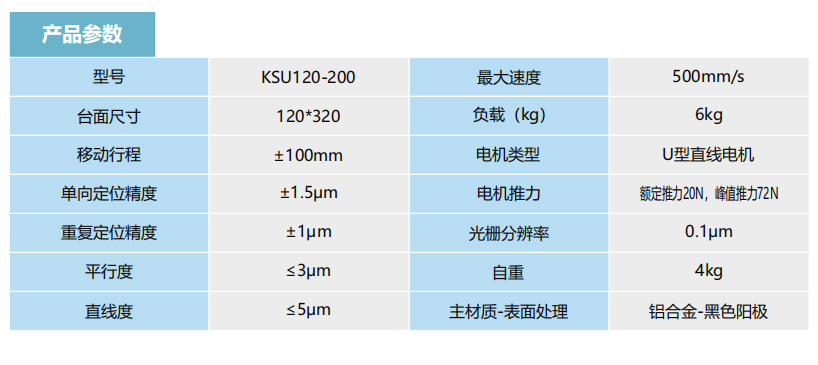

- Model Specification
- Product File Download
KSU series:
1. High speed, high precision, fast response
2. Without an iron core, there is no change in magnetic reluctance, ensuring smooth operation at low speeds
3. It boasts extremely high acceleration and deceleration, with fast dynamic response
4. Semiconductor lithography machines, wafer inspection equipment, biomedical instruments, precision measuring machines, high-speed Pick-and-Place robots, and FPD panel handling.
