ELCSB25-SV
- Nominal size：
- 25mm
- Lead：
- 3mm,6mm,12mm
- Stroke length：
- 30mm,50mm,75mm,100mm,150mm,200mm
- Product Overview

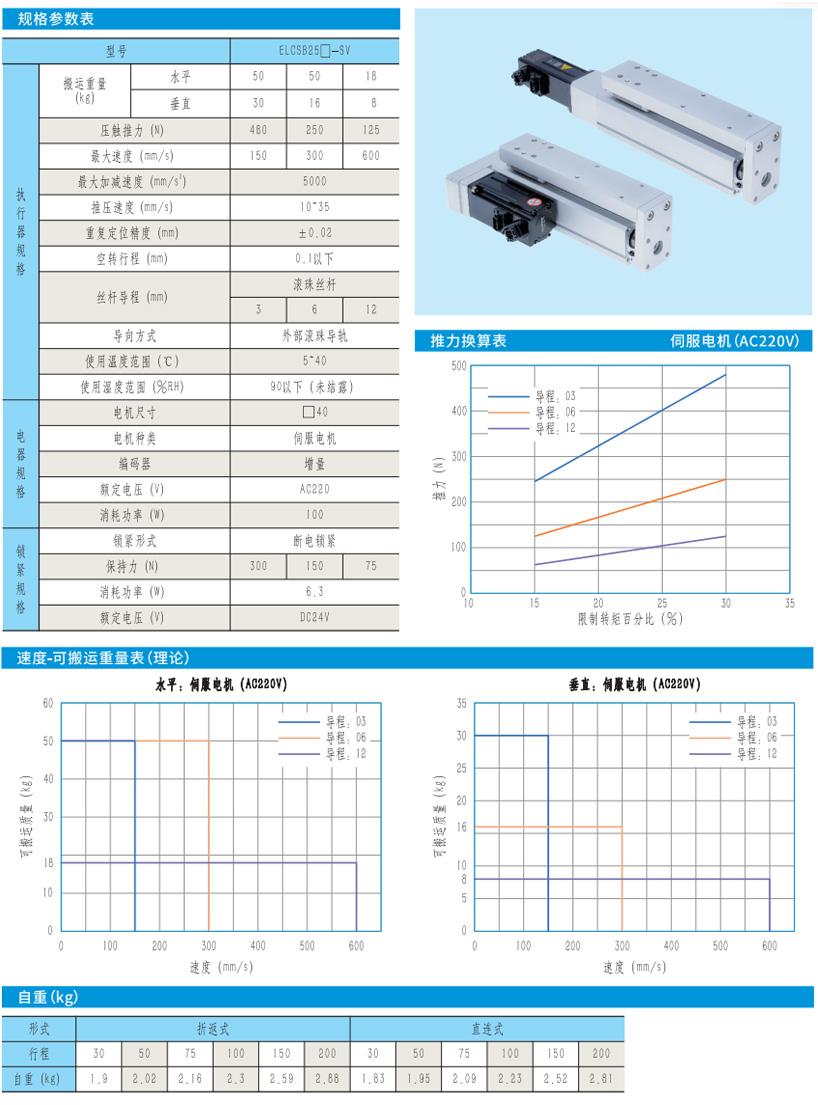

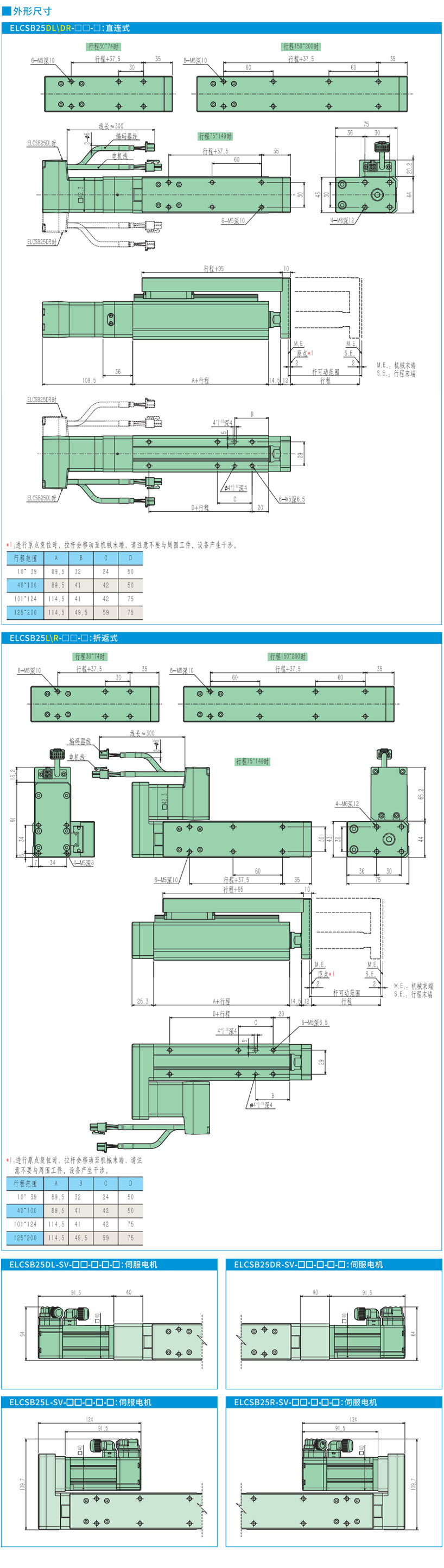

- Model Specification
- Product File Download
Characteristics of electric cylinder:
I Easy to use
1. It can be used through simple wiring, and can be operated with 24V DC power and switch signals.
2. Built-in torque return function, no need to install sensors (right picture).
3. It can easily set multiple points for positioning.
4. The thrust and operating speed can be easily set.
5. Multi-axis operation can be achieved through various buses.
6. Compared to traditional cylinders, it eliminates the need for pneumatic components, thus eliminating the concerns of air leaks and maintenance.
II environment protection
1. No air source is required, significantly reducing power consumption.
2. No need for exhaust, low noise, and no odor.
III high performance
1. Simple structure, no maintenance required! Capable of long-term operation.
2. There are no vulnerable parts, and it is not affected by external environment. Under rated load, its lifespan can be predicted.
IV high precision
Utilizing high-precision ball screws and T-shaped screws, the positioning accuracy can reach ±0.01 (ball screws) and ±0.05 (T-shaped screws). The motor part adopts closed-loop stepper motors or servo motors with encoders, which have high precision and are less prone to step loss.
Notes:
1. Please use the sliding table within the rated load range: Select the model based on the maximum handling weight and allowable torque. Overloading may cause gaps in the guide rail and affect accuracy.
2. Do not use under conditions where excessive external force or impact is applied: it may cause the slide table to malfunction.
3. Except when returning to the original point, do not collide with the end of the travel range: If the sliding table collides with the end of the travel range, it may damage the guide rails, bearings, internal limits, etc., rendering it unable to operate normally. When used vertically, the sliding table may also fall due to the self-weight of the workpiece, causing it to collide with the end of the travel range, so attention should also be paid to this.
4. The parallelism of the installation surface should be below 0.02: If the parallelism of the surface on which the sliding table is installed is poor, it can cause deformation of the sliding table installation surface, affecting the accuracy of the guide rail and the smoothness of the sliding motion.
5. When installing workpieces or fixtures onto the rod end, please secure the wrench fitted to the rod end and apply tightening torque to the wrench used to fix the workpiece. There is a non-rotating mechanism inside the piston rod, so do not apply external torque to the piston rod.
6. When using the electric rod in conjunction with the external guide rail, please pay attention to the assembly accuracy: When used with the external guide rail, any deviation in the parallelism between the electric cylinder and the guide rail (refer to the figure below) may lead to malfunction or damage to the electric cylinder. Please be careful! It is recommended to use a floating joint for connection.
7. When installing the sliding table, please use screws of an appropriate length and tighten them within the MAX tightening torque range. Exceeding the MAX tightening torque value may cause poor movement of the sliding table, while insufficient tightening may lead to sliding table offset or falling off. Please take note.
