Flat-type Series

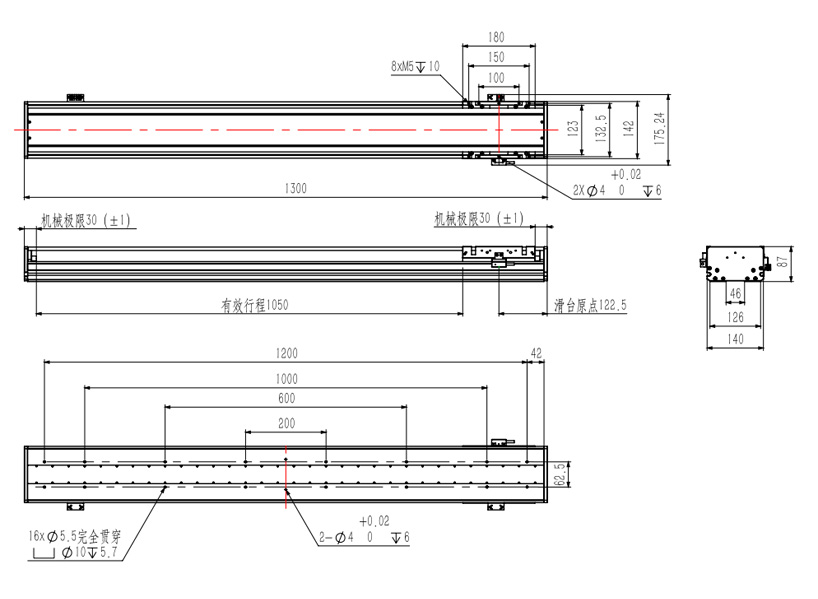

KSP140-1050
- Stroke length：
- ±525mm
- Unidirectional positioning accuracy：
- ±2μm
- Positional repeatability：
- ±1μm
- Motor thrust：
- 额定推力128N 峰值推力426N
- Product Overview

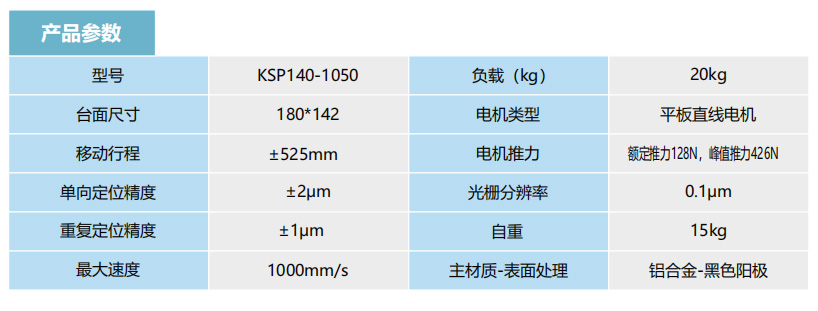

- Model Specification
- Product File Download
KSP series:
1. High thrust, high rigidity, long stroke
2. Large magnetic flux, capable of providing substantial continuous force and peak force
3. With a sturdy structure and high rigidity, it can bear greater loads
4. CNC machining center, laser cutting/welding, stamping machine, injection molding machine, automated logistics line, etc.
Prev： No more
Next：
KSP120-2450
×
