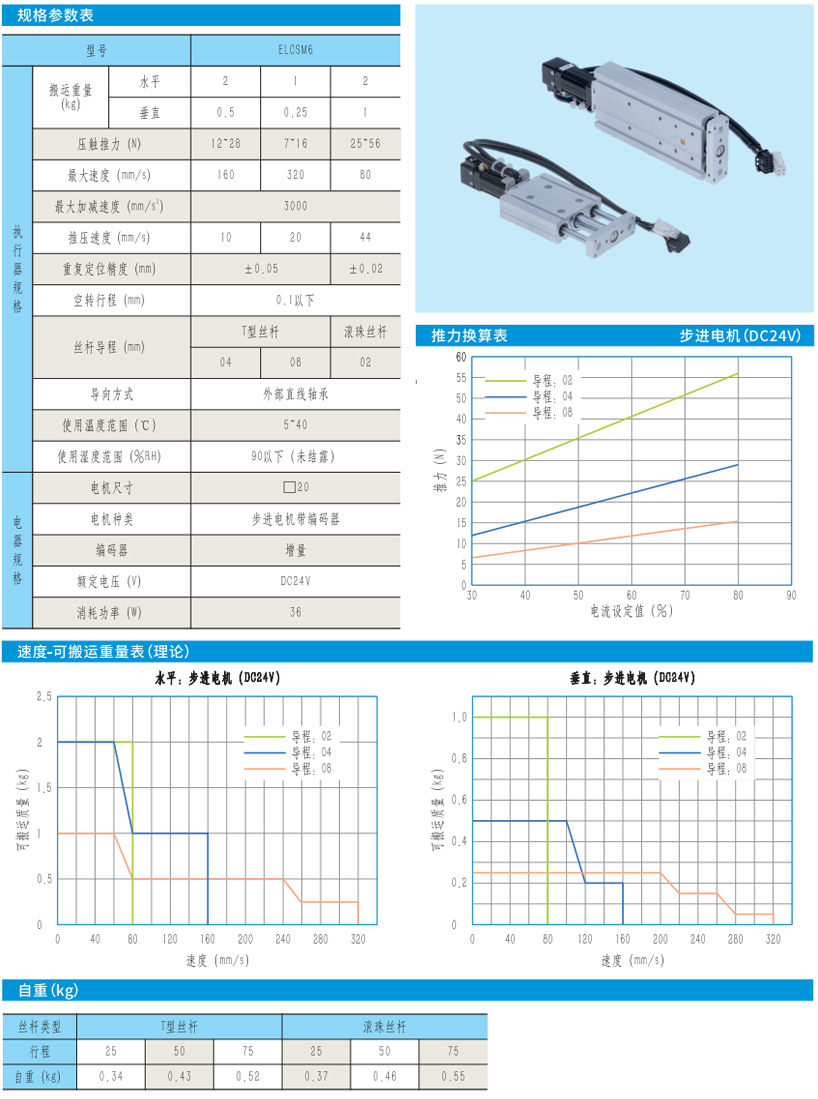

Characteristics of electric cylinder:

1 Easy to use

1. It can be used through simple wiring, and can be operated with 24V DC power and switch signals.

2. Built-in torque return function, no need to install sensors (right image).

3. It can easily set multiple points for positioning.

4. The thrust and operating speed can be easily set.

5. Multi-axis operation can be achieved through various buses.

Compared to traditional cylinders, there is no need for air path accessories, eliminating the troubles of air leakage and maintenance.

II environment protection

1. No air source is required, significantly reducing power consumption.

2. No need for exhaust, low noise, and no odor.

III high performance

1. The structure is simple and requires no maintenance! It can operate for a long time.

2. It has no wear parts and is not affected by external environment. Under rated load, its service life can be predicted.

IV high precision

Utilizing high-precision ball screws and T-shaped screws, the positioning accuracy can reach ±0.01 (ball screw) and ±0.05 (T-shaped screw). The motor part adopts closed-loop stepper motors or servo motors with encoders, which have high precision and are less prone to step loss.

Notes:

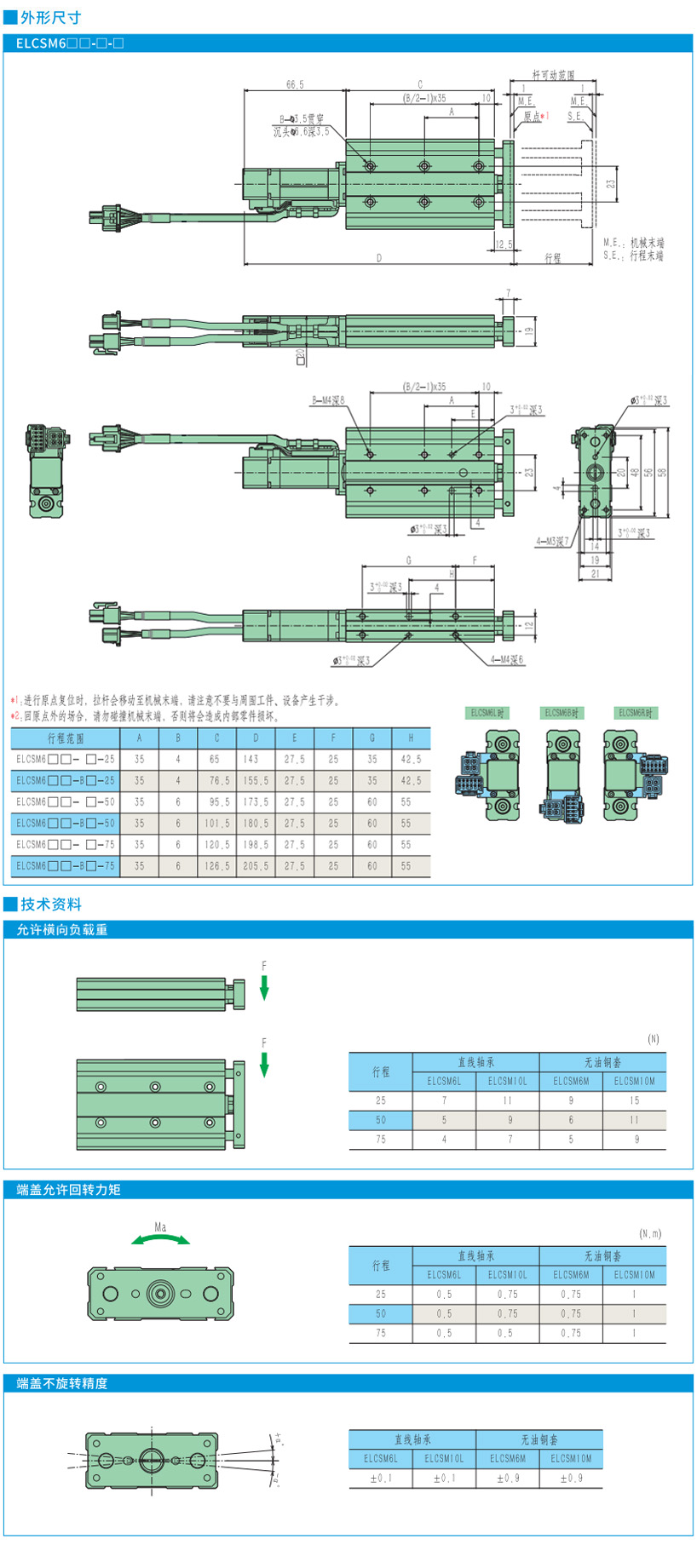

1. Please use the sliding table within the rated load range: Please select the model based on the MAX handling weight and allowable torque. Overloading will cause gaps in the guide rail and deteriorate accuracy.

2. Do not use under conditions of excessive external force or impact: it may cause the slide table to malfunction.

3. Except when returning to the original point, do not collide with the end of the travel range: If the sliding table collides with the end of the travel range, it may damage the guide rails, bearings, internal limit switches, etc., preventing normal operation. When used vertically, the sliding table may also collide with the end of the travel range due to the self-weight of the workpiece causing it to fall, so care must also be taken.

4. The parallelism of the installation surface should be below 0.02: If the parallelism of the surface on which the sliding table is installed is poor, it can cause deformation of the sliding table installation surface, affecting the accuracy of the guide rail and the smoothness of the sliding motion.

5. Do not block the exhaust vent: The exhaust vent discharges the gas generated inside the electric cylinder during its movement. Please do not block it, otherwise it may cause the electric cylinder to move unsmoothly.

6. When installing the sliding table, please use screws of an appropriate length and tighten them within the MAX tightening torque range. Exceeding the MAX tightening torque value may cause poor movement of the sliding table, while insufficient tightening may result in the sliding table deviating or falling off. Please take note.

7. Be careful not to get your hand caught: When the electric cylinder moves, a gap will form between the end cap and the main body (as indicated by the arrow in the image below), so please be careful not to get your hand caught.

8. Do not use the sliding table in a suspended manner: Suspended use may cause malfunctions, abnormal noises, increased deformation, etc.
