Characteristics of electric cylinder:

1 Easy to use

1. It can be used through simple wiring, and can be operated with 24V DC power and switch signals.

2. With built-in torque reset function, no sensor installation is required (as shown in the right figure).

3. It allows for simple setting of multiple points for positioning.

4. The thrust and operating speed can be easily set.

5. Multi-axis operation can be achieved through various buses.

6. Compared to traditional cylinders, there is no need for air path components, eliminating the troubles of air leakage and maintenance.

II environment protection

1. No air source is required, significantly reducing power consumption.

2. No need for exhaust, low noise, and no odor.

III high performance

1. The structure is simple and requires no maintenance! It can operate for a long time.

2. It has no vulnerable parts and is not affected by external environment. Under rated load, its service life can be predicted.

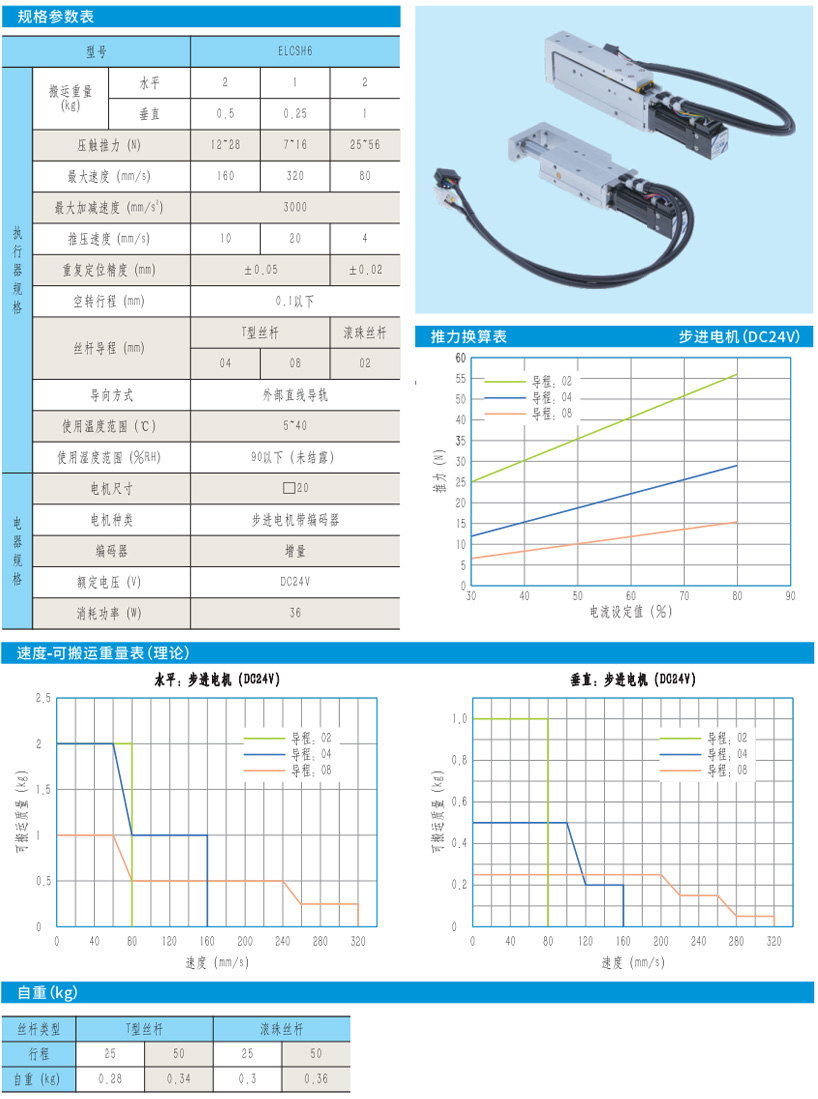

IV high precision

Using high-precision ball screws and T-shaped screws, the positioning accuracy can reach ±0.01 (ball screws) and ±0.05 (T-shaped screws). The motor part adopts closed-loop stepper motors or servo motors with encoders, which have high precision and are less prone to step loss.

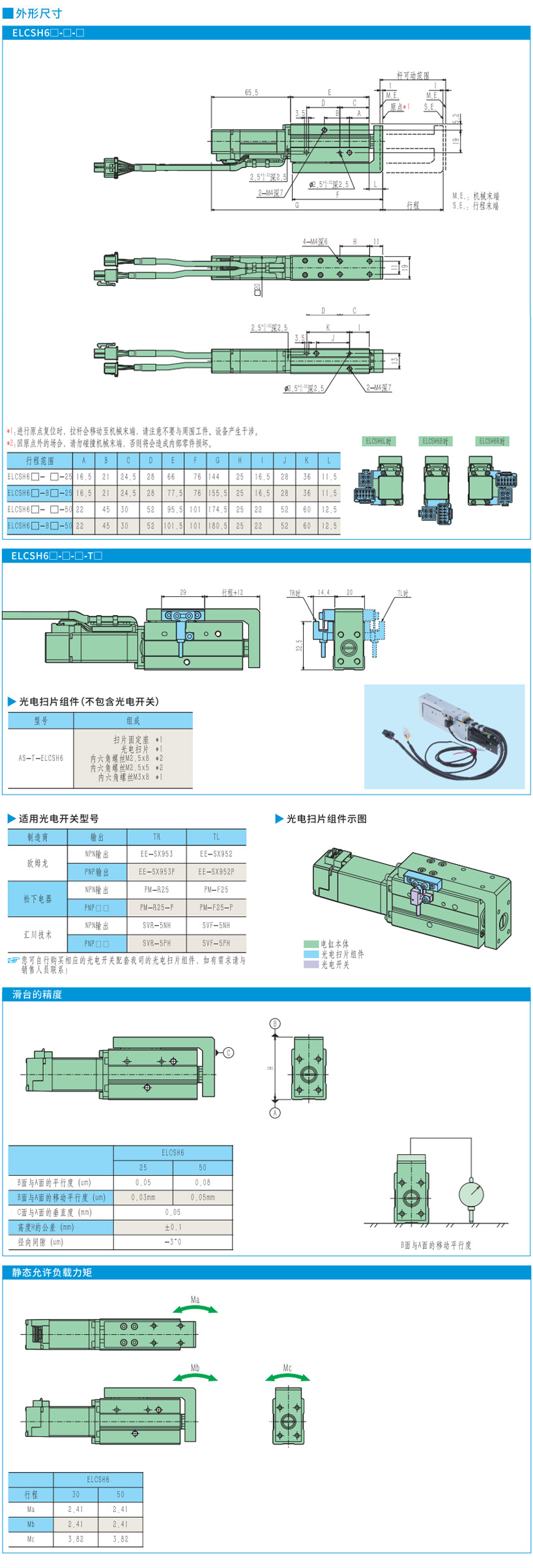

Notes:

1. Please use the sliding table within the rated load range: Please select the model based on the MAX handling weight and allowable torque. Overloading may cause gaps in the guide rail and affect accuracy.

2. Do not use it under conditions of excessive external force or impact: it may cause the sliding table to malfunction.

3. Except when returning to the original point, do not collide with the end of the travel range: If the sliding table collides with the end of the travel range, it may damage the guide rails, bearings, internal limit switches, etc., preventing normal operation. When used vertically, the sliding table may also collide with the end of the travel range due to the self-weight of the workpiece causing it to fall, so care must also be taken.

4. The parallelism of the installation surface should be below 0.02: If the parallelism of the surface on which the sliding table is installed is poor, it can cause deformation of the sliding table installation surface, affecting the accuracy of the guide rail and the smoothness of the sliding motion.

5. Do not block the exhaust vent: The exhaust vent discharges the gas generated inside the electric cylinder during its movement. Please do not block it, otherwise it may cause the electric cylinder to move unsmoothly.

6. When installing the sliding table, please use screws of appropriate length and tighten them within the MAX tightening torque: exceeding the MAX tightening torque value may cause poor movement of the sliding table, while insufficient tightening may result in sliding table deviation or falling off. Please take note.

7. Be careful of hand injury: During the movement of the electric cylinder, a gap may form between the end cap and the main body (as indicated by the arrow in the image below), so please be careful to avoid getting your hand caught.
