Dovetail Slot Gear Rack Type-LW Series
Current Location：
Home
> Product center
> Manual Linear Stage Series
> Dovetail Slot Gear Rack Type-LW Series

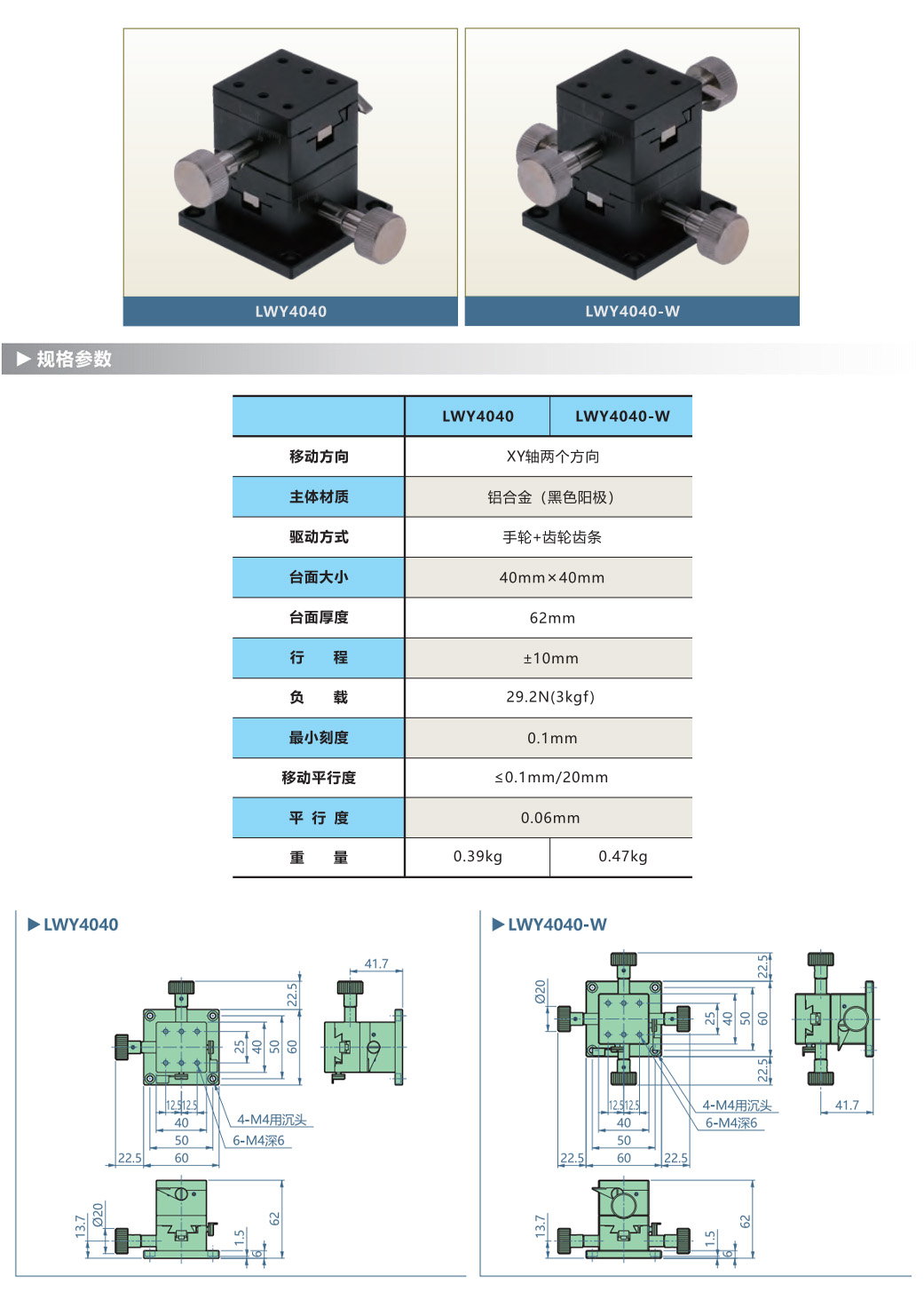

LWY4040
- Direction：
- XY轴
- Size：
- 40mm*40mm
- Thickness：
- 62mm
- Stroke length：
- ±10mm
- Product Overview
- Model Specification
- Product File Download
Product Features
1. The driving mode adopts gear and rack, which allows for a higher working frequency and is suitable for applications requiring rapid movement and large travel range.
2. The main material is aluminum alloy, which is lightweight and suitable for being built into other devices.
3. It features a long-travel track and can be equipped with multiple sliders.
×
