Dovetail Groove Dcrew Type -LWF Series
Current Location：
Home
> Product center
> Manual Linear Stage Series
> Dovetail Groove Dcrew Type -LWF Series

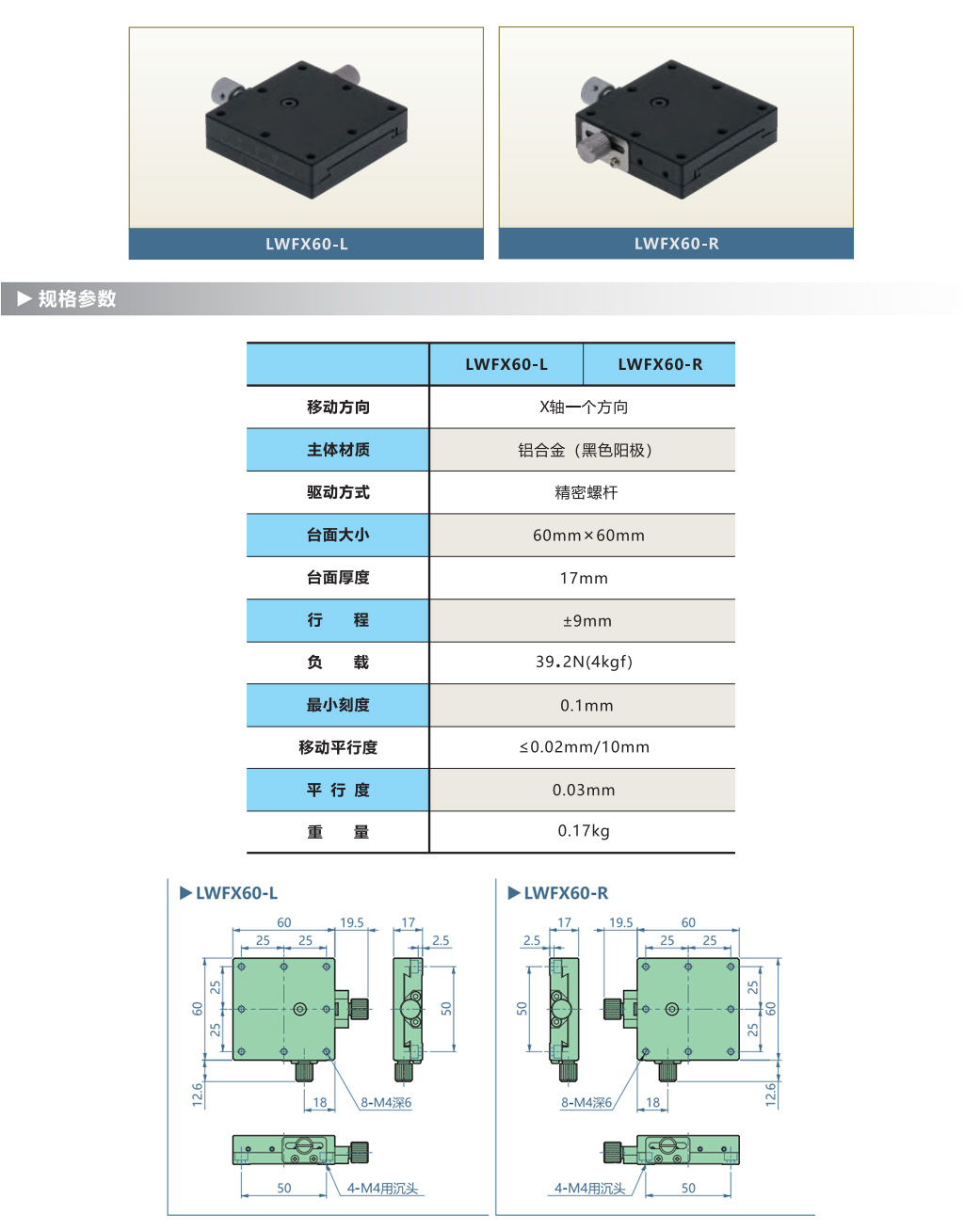

LWFX60
- Direction：
- X轴
- Size：
- 60mm*60mm
- Thickness：
- 17mm
- Stroke length：
- ±9mm
- Product Overview
- Model Specification
- Product File Download
Product Features:
1. It adopts precision screw drive, with 1 rotation of the knob corresponding to 0.5mm.
2. Thin type, with a thickness of 15mm for 25 and 40 countertops, and 17mm for 60 countertops.
3. The overall material is aluminum alloy, which is lightweight.
×
