Dovetail Groove Dcrew Type-LWHZ Series

LWHZ40

LWHZ40
Direction:
Z轴
Size:
40mm*40mm
Thickness‌:
34~39mm
Stroke length:
5mm
  • Product Overview

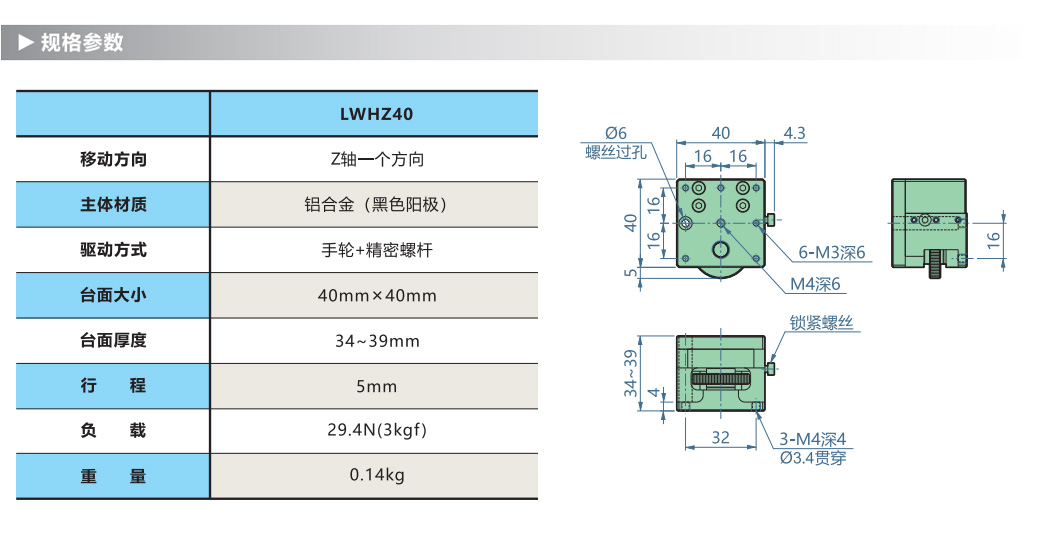

  • Model Specification
  • Product File Download

Product Features:


1. It adopts precision screw drive, with 1 rotation of the knob corresponding to 0.5mm.


2. Thin type, with a thickness of 15mm for 25 and 40 countertops, and 17mm for 60 countertops.


3. The overall material is aluminum alloy, which is lightweight.
