Linear Guide Type-TS Series
TSV80
- Direction：
- Z轴
- Size：
- 80mm*80mm
- Thickness：
- Stroke length：
- 55mm,105mm,155mm,205mm
- Product Overview

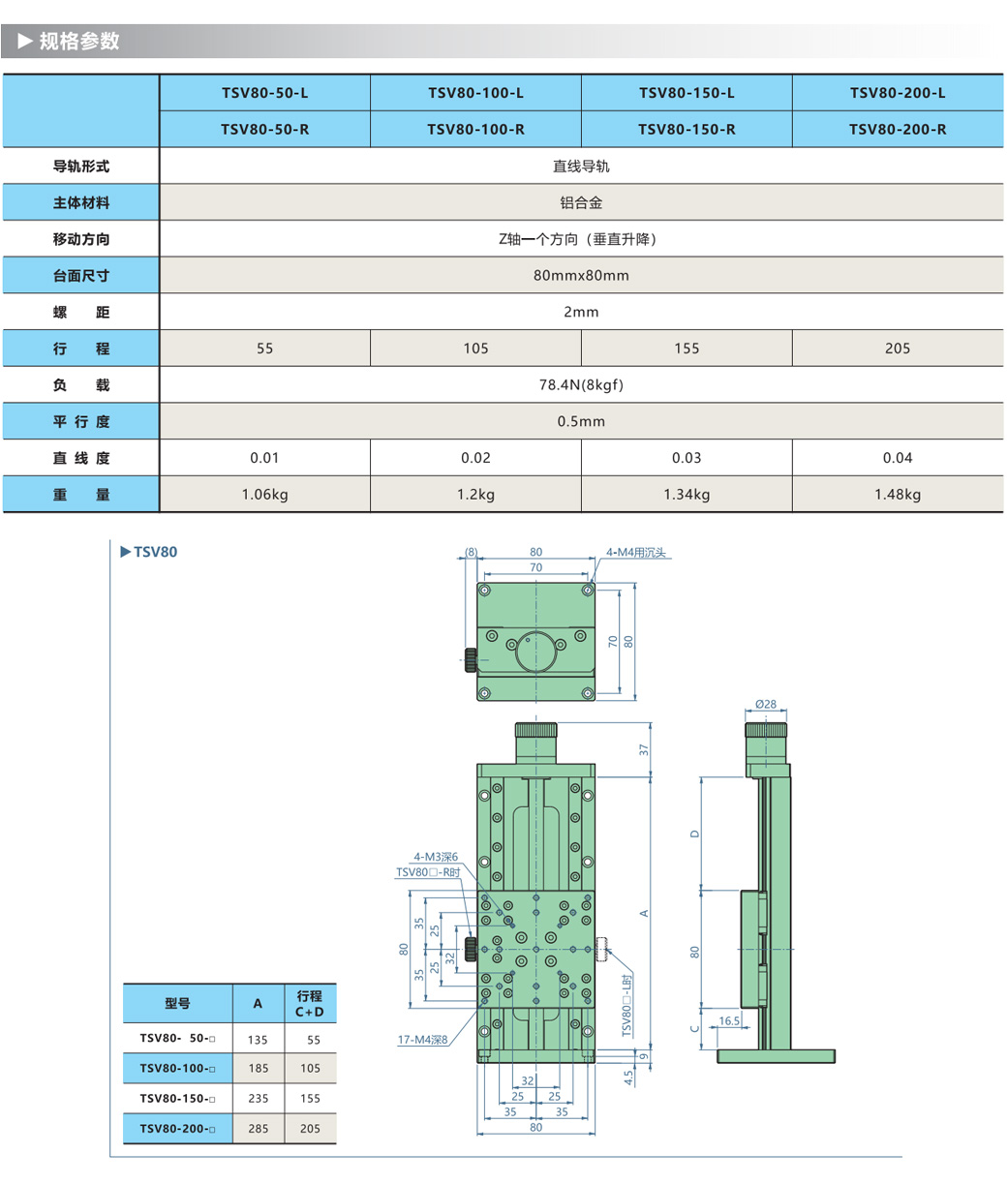

- Model Specification
- Product File Download
Product Features:
1. Precision linear guide rails and T-shaped lead screws with a pitch of 2mm are employed.
2. Suitable for occasions requiring large-range adjustments.
3. Adopt handwheel drive.
4. Itineraries and tabletop mounting holes can be customized according to customer needs.
